Lynx Heli Blade 130X DS-883 Tail Servo w/Support (Silver) - LX0525-A

LX0525-A

$35.99

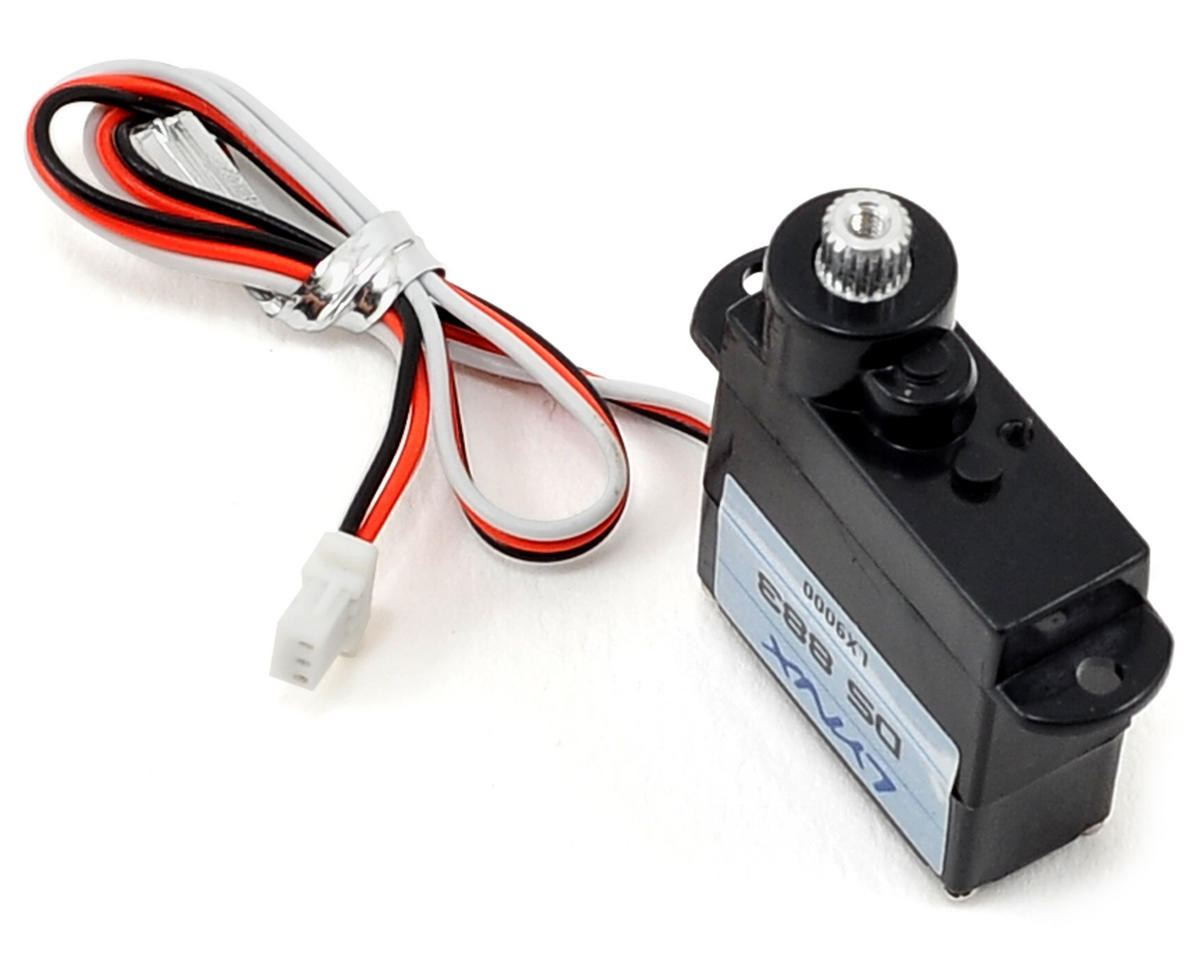

This is the Silver Lynx Heli DS-883 Tail Servo with Support. This tail servo is a combination of standard servo components with special electronics complete with connector designed to work perfectly in the 130 X 3-in-1 boards but as well can work with standard FBL system.

Features:

Direct replacement for the standard 130X tail servo
Metal Gear Digital Precision Servo
Input (V-in): 3.5 to 5 V
Frequency: 450 Hz
Neutral Point: 1500μs
Speed: 0.08 sec / 60° at 3.5V, 0.07 sec / 60° at 5 V
Stall Torque: 1.25 kgcm at 3.5V, 1.60 kgcm at 5 V
Dimension: 19.60 x 8.00 x 19.40 mm
Weight including 160 mm cable connector: 5.25g
Output Gear support: Radial bearing 4x7 W2

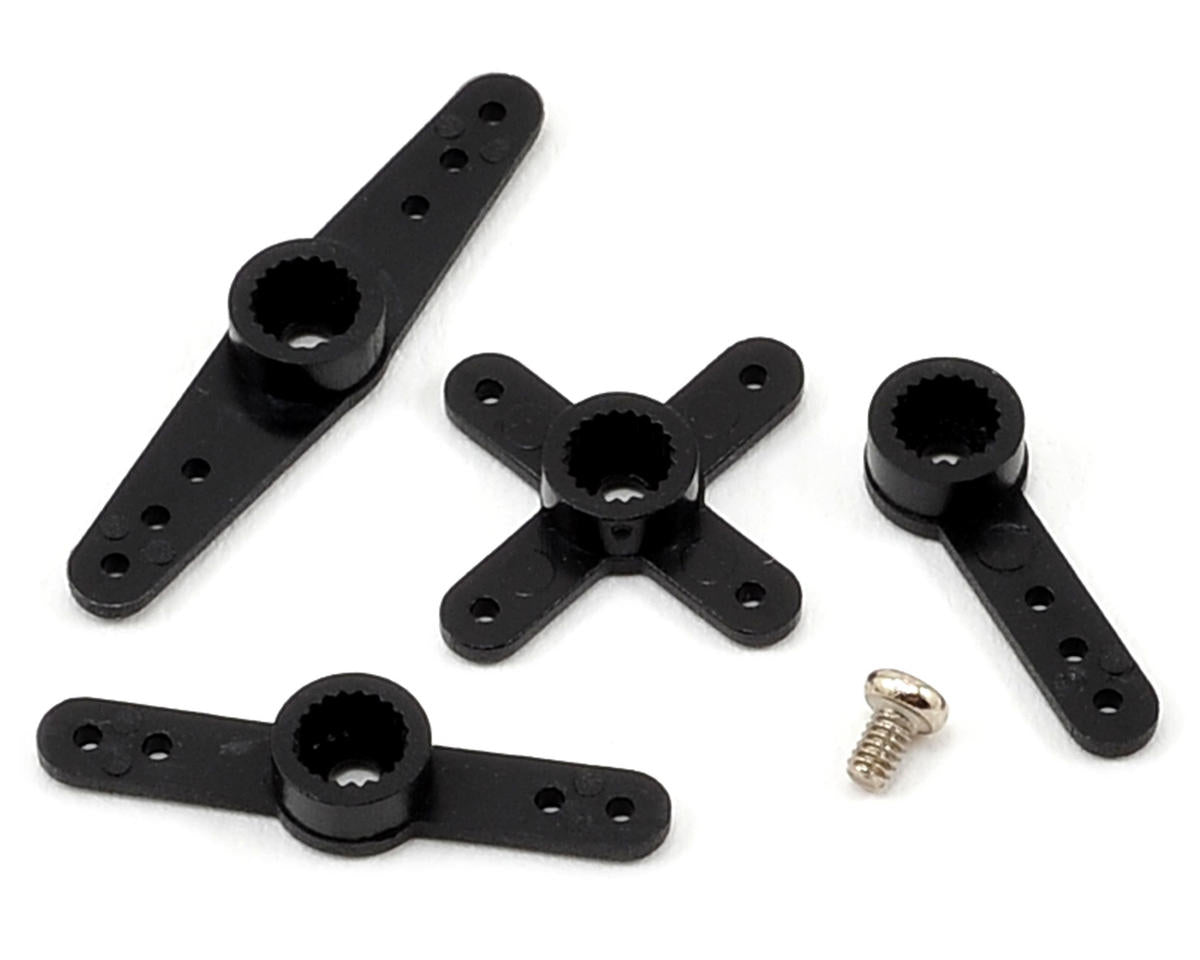

Servo Arms: 4 type included (see extra pictures)
Servo Case Material: Technopolymer base plastic

Specifications:
Tail servo support material: Aluminum 7075-T6 – Silver anodized finish
Screw material: Carbon steel plated
Assembled weight: 0.25g

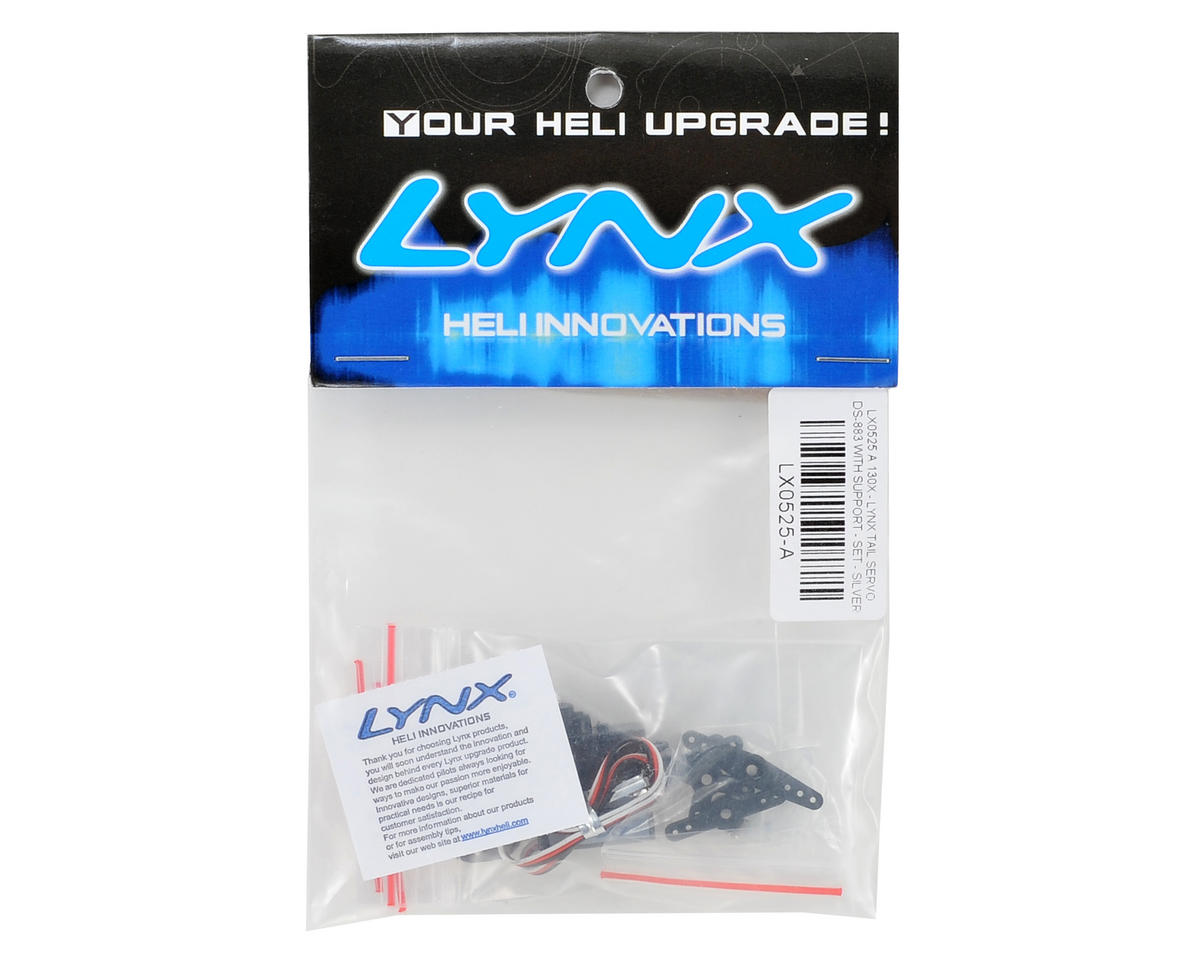

Includes:

(1) Digital Precision MG rotative tail servo DS-883, with necessary servo arms and hardware

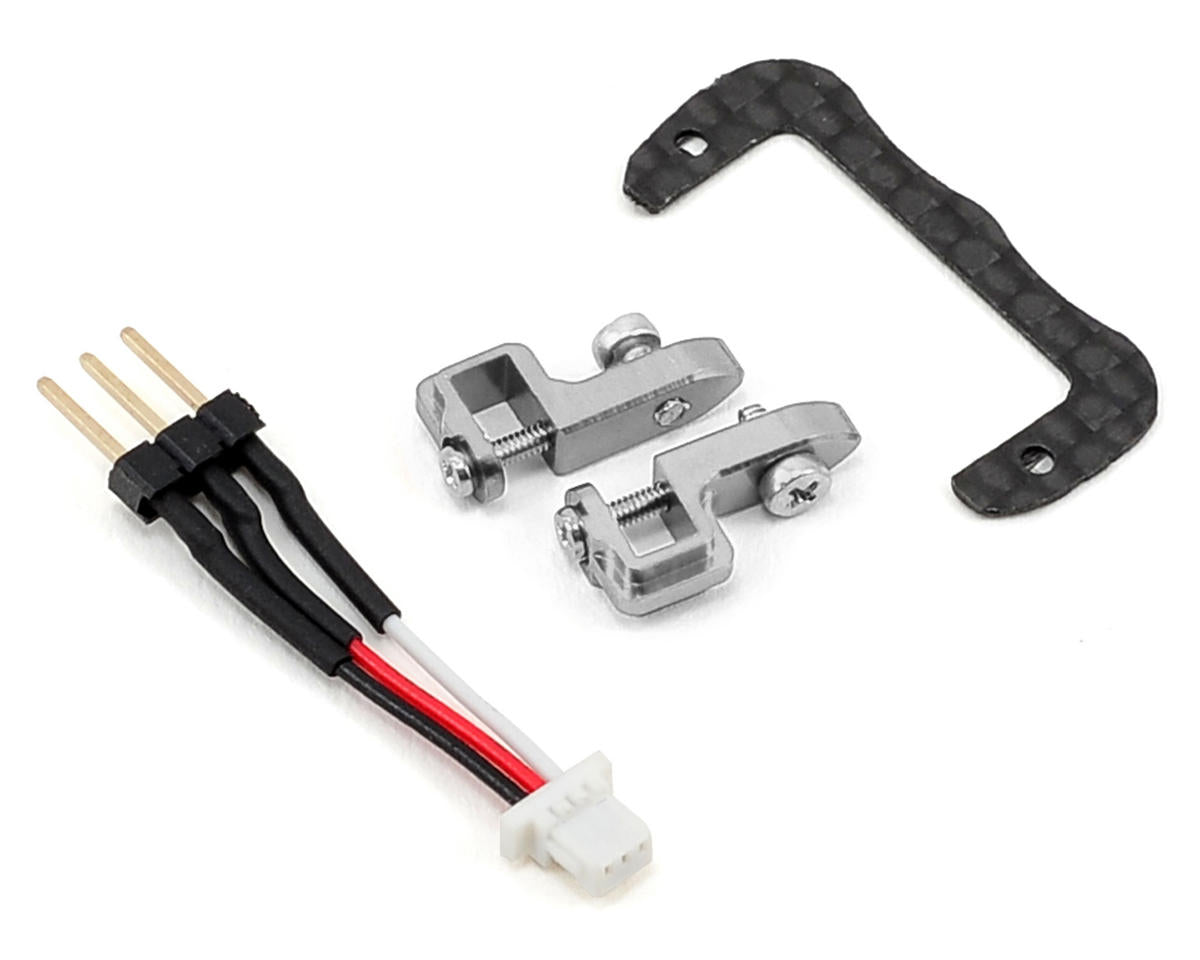

(2) CNC 130X – Universal Micro Rotative tail servo support - Silver
(2) M1.4x6 Pan Head screws
(2) M1.6x4 Pan Head screws
(2) Flat Washer 1.6

Note: Lynx states that the best servo arms length is between 5.5 to 6.5 mm. Start with 6.5 mm and set the servo travel like was with the linear servo and don’t try to increase that travel. Also, start with a -5 Tail Gyro setting and test your Heli tail. In performing your test, you will adjust the tail gain for your need and Heli setting. If, with all negative Tail Gyro setting, you still have tail wag, move the servo arm length to 6 or 5.5 mm and restart the test.
